Okay folks, this was kind of a build and release for me. I built it, played briefly, then shelved it because I got my Haiku back! So, the light is in excellent, near mint shape.

Let's see what it is:

The bezel is a polished stainless one from a Novatac
The head is an Aleph A19, "blackish" anodizing, has McR19XR reflector, sapphire lens.

The light engine is special. It is build with an Aleph XR can as follows:
- LED is 4000K XML2 on direct thermal copper board
- circuit is a custom Flucero circuit based on AMC7135 chips. It is programmed with 5 levels plus strobe.
There is a hybrid memory mode, with 0.5 second latch time (latches after being on for 0.5 seconds). Reset
is back to moonlight so you never have to hit strobe if you don't want to.
- The levels are approx.: moonlight, 2, 30, 110, 300+ lumens based on currents of 4,9,77,299,1413mA
- This is a super rare circuit, I have one in my Haiku. It only runs RCR123 (primaries may work with greatly
reduced output). I also got a nice brass contact I added to the positive terminal of the pill.
- There is also a nice aqua glow sticker around the LED so you get a nice afterglow.

The body is a natural HA Surefire E1L with a 2way clip from an E1B
The tailcap is a McGizmo McTc with a McClicky installed. it matches the head well and allows tailstanding.

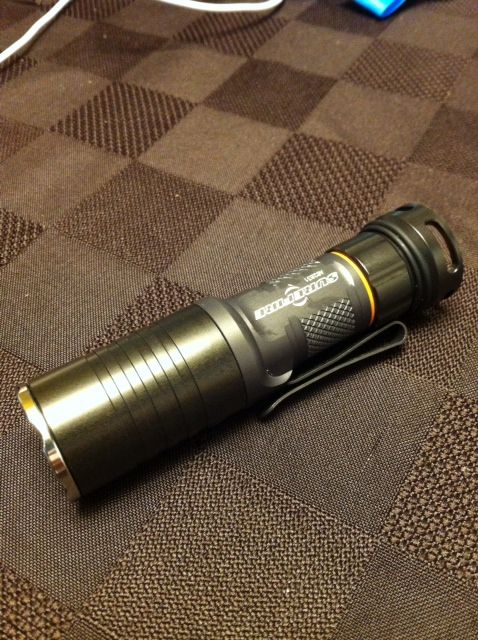

I have a few options on trim o-ring (for style) and boot. The first picture shows orange, but I have glow in the dark green right now. Black is also an option.

I only have a quick picture now, I'll add more detailed shots later tonight.

>> SPF <<

Asking $200 Paypal for this rare, custom beast, shipped USA. All others add $5.
